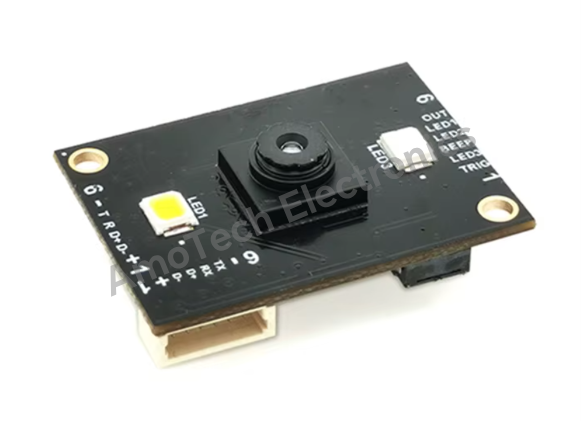

GM805 Series UART USB DC5V Barcode Scanner Reader Module 1D/2D QR Bar Code Reader For Android Arduino

GM805 Series UART USB DC5V Barcode Scanner Reader Module 1D/2D QR Bar Code Reader For Android Arduino

SKUMIC0011
AvailabilityIn Stock
23,500 RWF

7-day returns on unused items · Faulty on arrival? We replace it. Returns & warranty

GM805 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.
GM805 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.


Technical Specification:


Parameter

Performance

Sensor

CMOS

Scan Mode

640*480

Lighting

White LED

Indicator Light

Blue LED


Read Code Type

1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128,

Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,

Matrix2of5, Code 39,Code11, MSI-Plessey,

GS1 Composite,GS1-Databar (RSS)

2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec

GM805-S

Reading Distance


  5-30cm

GM805-L

Reading Distance


7-50cm

Contrast*

?25%

Scan Angle**

Roll:360°Pitch:65°Yaw:65°

Viewing Angle

67°(Horizontal)53°(Vertical)

Accuracy of reading*

?10mil

Mechanical/electrical Parameters:


Parameter

Performance

Interface

TTL-232/USB

Size(mm)

28*20 mm

Weight

2.1g

Prompting mode

Buzzer LED Indicator

OperatingVoltage

5V

Operation Current

70mA(Max)

Standby Current

?6mA(Typical)

Startup time

?250mS (Typical)



Environmental Parameters:

Parameter

Performance

Operatingtemperature

-20?~60?

Storage Temperature

-40?~+70?

Operating Humidity

5%~95%?Non-Condensing?

Environmental Light

Normal indoor light source

Fall

Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)
