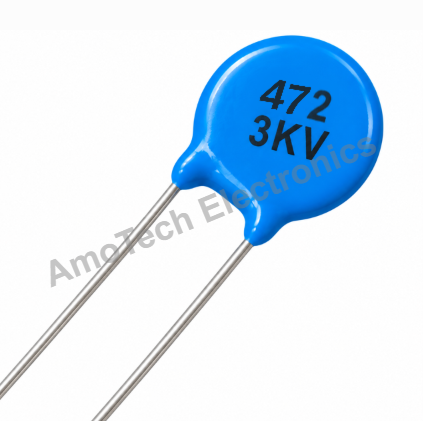

4.7nF 3KV(472) Ceramic Capacitor

The 4.7 nF 3 kV Ceramic Capacitor is a compact and reliable electronic component designed to store electrical charge and support stable operation in high-voltage circuits. It has a capacitance of 4.7 nanofarads (4,700 pF or 0.0047 µF) and a rated voltage of 3,000 V (3 kV). The marking 472 indicates a capacitance of 4,700 pF, equivalent to 4.7 nF. This capacitor is suitable for high-voltage filtering, signal coupling, and other electronic applications requiring a high-voltage-rated component.

Specifications

• Product Name: 4.7 nF 3 kV Ceramic Capacitor
• Component Type: Ceramic Capacitor
• Capacitance: 4.7 nF (4,700 pF or 0.0047 µF)
• Voltage Rating: 3,000 V (3 kV)
• Capacitor Code: 472
• Dielectric Material: Ceramic
• Function: Electrical charge storage and signal filtering
• Applications: High-voltage circuits, filtering, signal coupling, and electronic equipment
• Mounting Type: Depends on the specific model
• Tolerance: Depends on the specific model
• Operating Temperature: Depends on the dielectric type and manufacturer

Applications

• High-voltage electronic circuits
• Power supply filtering
• High-frequency signal filtering
• Signal coupling and tuning
• Electronic circuit design and prototyping
• Electronic equipment repair and maintenance

Note: Confirm the capacitance, voltage rating, tolerance, dimensions, and temperature range against the manufacturer's datasheet. A 3 kV rating does not automatically make the capacitor suitable for mains-connected or safety-critical applications. High-voltage circuits can retain dangerous electrical charges even after power is disconnected.
