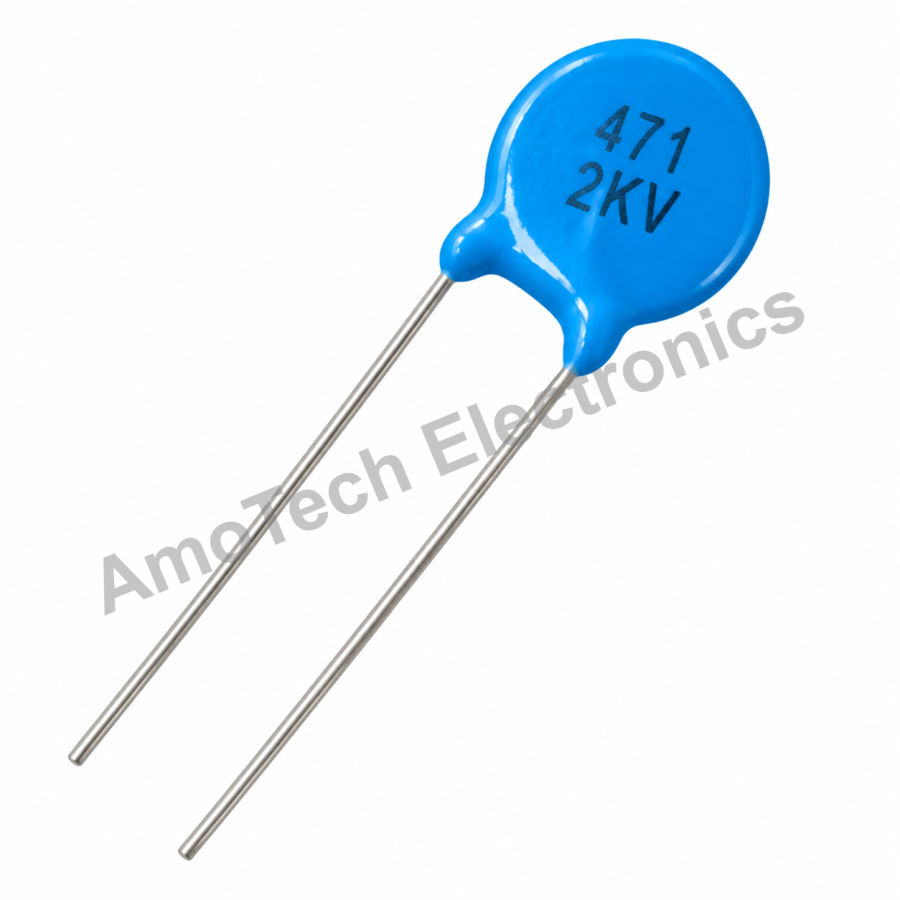

0.47nF 2KV(471) Ceramic Capacitor

The 0.47 nF 2 kV Ceramic Capacitor is a compact and reliable electronic component designed to store electrical charge and support stable operation in high-voltage circuits. It has a capacitance of 0.47 nanofarads (470 pF) and a rated voltage of 2,000 V (2 kV). The marking 471 indicates a capacitance of 470 pF, equivalent to 0.47 nF. This capacitor is suitable for high-voltage filtering, signal coupling, high-frequency circuits, and other electronic applications requiring low capacitance and a high voltage rating.

Specifications

• Product Name: 0.47 nF 2 kV Ceramic Capacitor
• Component Type: Ceramic Capacitor
• Capacitance: 0.47 nF (470 pF or 0.00047 µF)
• Voltage Rating: 2,000 V (2 kV)
• Capacitor Code: 471
• Dielectric Material: Ceramic
• Function: Electrical charge storage and signal filtering
• Applications: High-voltage circuits, signal coupling, filtering, and high-frequency applications
• Mounting Type: Depends on the specific model
• Tolerance: Depends on the specific model
• Operating Temperature: Depends on the dielectric type and manufacturer

Applications

• High-voltage electronic circuits
• High-frequency signal filtering
• Signal coupling and tuning
• Power supply circuits
• Electronic circuit design and prototyping
• Electronic equipment repair and maintenance

Note: Confirm the capacitance, voltage rating, tolerance, dimensions, and temperature range against the manufacturer's datasheet. A 2 kV rating does not automatically make the capacitor suitable for mains-connected or safety-critical applications. High-voltage circuits can retain dangerous electrical charges even after power is disconnected.
