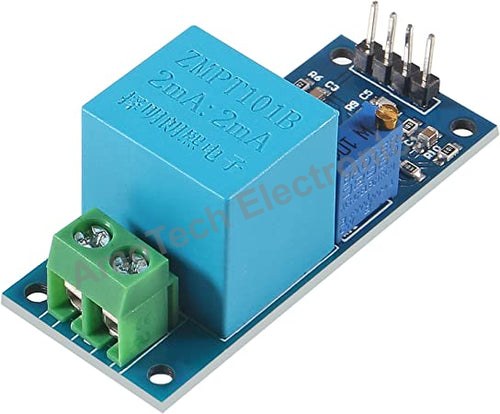

The ZMPT101B AC Voltage Transformer Sensor Module is an isolated voltage-sensing module designed for measuring AC voltage in electronic monitoring and control systems. It uses a miniature voltage transformer to provide electrical isolation between the measured AC circuit and the low-voltage measurement circuitry.
The module provides an analog output that can be connected to a suitable Arduino, ESP32, STM32, Raspberry Pi ADC, or other microcontroller-based system for AC voltage monitoring and measurement. An onboard adjustment potentiometer can be used to configure the signal level for the connected measurement system.
Based on the ZMPT101B voltage transformer
Designed for AC voltage measurement
Electrical isolation between measurement and control circuits
Analog output signal
Onboard potentiometer for signal adjustment
Compact module design
Easy to integrate with microcontroller projects
Suitable for AC voltage monitoring applications
AC voltage monitoring
Power supply monitoring
Energy-monitoring projects
Smart home and IoT systems
Arduino and ESP32 projects
Industrial monitoring prototypes
Power-quality experiments
DIY electronics and electrical measurement projects
The ZMPT101B AC Voltage Transformer Sensor Module provides a convenient way to add isolated AC voltage sensing to electronic systems, making it useful for monitoring, automation, IoT, and educational projects.
